triSOL set
Kospel offers complete solar heating systems. The following assumptions has been used in order to size the systems: the average annual solar hot water demend - about 60%, active absorber surface area 1,2-1,6 m per person, the avarage daily hot water consumption - about 60 litres per person, system height - 6 m (higher systems must be designed by professionals).
Download
Solar sets must be matched to a slope of the roof
Installation and operation instruction - inclined roof, sheet metal roofing
Solar system installation diagram

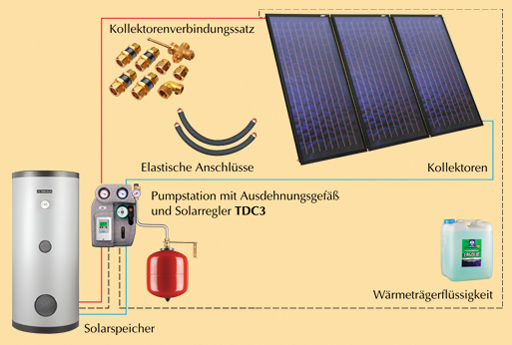

ZSH-3/300 triSOL system (for 4-5 persons)
- 3 x collector KSH-2,0
- solar tank SB-300
- SolarComp 911 Controller / TDC3 Controller
- pump station (two-way)
- expansion vessel (25 liters) with connection kit
- collectors connection kit
- 2 x flexible hose
- 2 x masking panel
- solar fluid (20kg)
ZSH.A-3/400 triSOL system (for 5-6 persons)
- 3 x collector KSH.A-2,3
- solar tank SB-400
- SolarComp 911 temp. controller / TDC3 Controller
- pump station (two-way)
- expansion vessel (33 liters) with connection kit collectors connection kit 2 x flexible hose 2 x masking panel
- solar fluid (20kg)
Note! triSOL system is also available without a cylinder.
Roof mounting kits
A roof mounting kits are designed especially for quick and easy installation. The mounting kits are made of stainless steel and aluminium to ensure the long-term durability.
ZMP-1 (1x collector; flat roof)
ZMP-2 (2 x collector; flat roof)
ZMP-3 (3 x collector; flat roof)
ZMP-4 (4 x collector; flat roof)
ZMP-5 (5 x collector; flat roof)
ZMD-1 (1 x collector, inclined roof, ceramic tiles)
ZMD-2 (2 x collector, inclined roof, ceramic tiles)
ZMD-3 (3 x collector, inclined roof, ceramic tiles)
ZMD-4 (4 x collector, inclined roof, ceramic tiles)
ZMD-5 (5 x collector, inclined roof, ceramic tiles)
ZMB-1 (1 x collector, inclined roof, metal sheet tiles)
ZMB-2 (2 x collector, inclined roof, metal sheet tiles)
ZMB-3 (3 x collector, inclined roof, metal sheet tiles)
ZMB-4 (4 x collector, inclined roof, metal sheet tiles)
ZMB-5 (5 x collector, inclined roof, metal sheet tiles)
ZMS-1 (1 x collector 2,0; building wall)
ZMS-2 (2 x collector 2,0; building wall)
ZMS-3 (3 x collector 2,0; building wall)
ZMS-4 (4 x collector 2,0; building wall)
ZMS-5 (5 x collector 2,0; building wall)
