EPS Twister

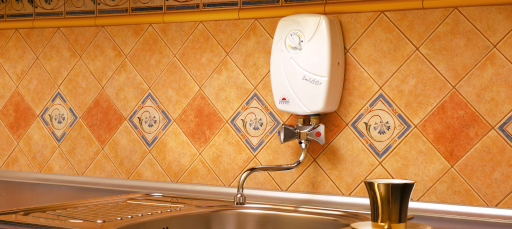

EPS Twister provides instant hot water for 'over the sink' applications. The mixing tap arrangement comes with a fine stream spray nozzle. This enables the unit to provide comfortable temperature at an economic cost.
Download
Application
washbasin from 3.5 kW
sink 5.5 kW
Key advantages
Mixing tap included in the set.
The water heater is a non-pressure appliance, it can only be connected to the mixing tap included in the set.
Fine stream spray nozzle.
The fine stream spray nozzle guarantees comfortable use and savings on water and energy up to 50%.
Power switch.
The power switch enables users to limit the power consumption from 5,5kW to 4,4kW.
| Type | EPS Twister |
|||
|---|---|---|---|---|
| Rated power | kW | 3.5 | 4.4 | 5.5/4.4 |
| Rated voltage | 230V ~ | |||
| Rated current | A | 15.2 | 19.1 | 23.9/19.1 |
| Fuse rated current | A | 16 | 20 | 25 |
| Min. connecting wires section | mm2 | 3x1.5 | 3x2.5 | |
| Efficiency (at 30°C/86°F temp. rise) | l/min | 1.7 | 2.1 | 2.6/2,1 |
| Supply water pressure | MPa | 0.12 - 0.60 | ||
| Dimensions | mm | 211 x 140 x 70 | ||
| Weight | ~1.4 | |||
| Inlet and outlet section | Gz 1/2" | |||
| Safety class | IP25 | |||
