EPA Opus
Key advantages
Electronic regulation of water temperature
Model EPA
230V~
Water flow regulation knob
Model EPA-C
400V 2~
Copper shielded heating elements
Reliable technology ensures long life, resistance to water decay and air bubbles.
The water heater is a non-pressure appliance, it can only be connected to fittings included in the set.
Application
Version EPA-U
Version EPA-P
Version EPA-PU

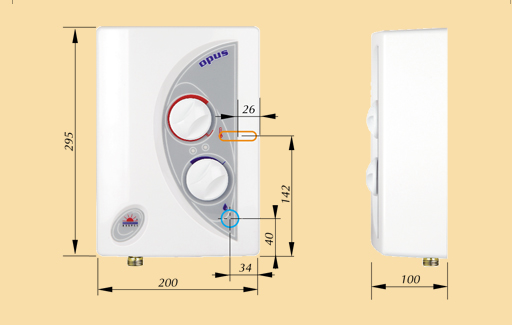

Dimensions
Technical data
| Type | EPA.. Opus | EPA C.. Opus | |||
|---|---|---|---|---|---|
| Rated power | kW | 6.8 | 8.4 | 7.0 | 8.6 |
| Rated voltage | 230V~ | 400V 2~ | |||
| Rated current | A | 29.6 | 36.5 | 17.5 | 21.5 |
| Fuse rated current | A | 32 | 40 | 20 | 25 |
| Min. connecting wires section | mm2 | 3x4 | 3x6 | 3x2.5 | |
| Efficiency (at 30° / 86°F temp. rise) | l/min | 3.3 | 4.0 | 3.4 | 4.1 |
| Supply water pressure | MPa | 0.1 - 0.6 | |||
| Dimensions | mm | 295 x 200 x 100 | |||
| Weight | kg | ~2.3 | |||
| Inlet and outlet section | Gw 1/2" | ||||
| Safety class | IP25 | ||||
