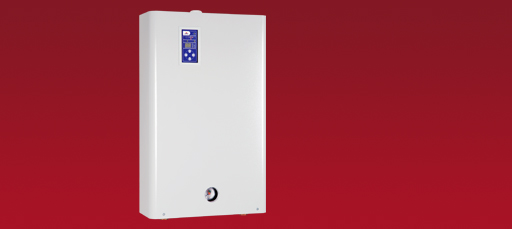

EKCO.T

EKCO.T electric central heating flow boilers are designed for wet central heating installations and hot water cylinders.

They can either operate as an independent source of heat or cooperate with other boilers. The application of the proper control system ensures high heat comfort, nearly maintenance free work as well as the possibility of individual setting adjustment. The quick system reaction to the changes of temperature together with the automatic 6-stage power modulation ensures the maximum efficiency in the power consumption.

Download

• Catalogue card
• Installation and operating instruction
• Intertek UK approval

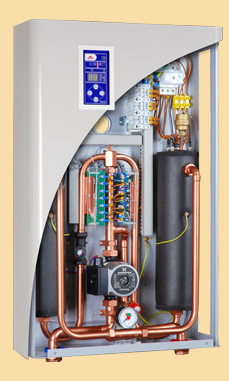

Features

• Panel control - electronic control board enures regulation of water temperature in central heating installation between 40oC do 85oC.
• Power board -  consists of electronic and semiconductor elements to ensure noisless and failure-free performance.
• Safety temperature limiter - cuts off the power in case of boiler failure . Protects  heating box and electronic elements against failure.
• Heating box  the boiler included two heating boxes. It ensures failure-free performance of heating elements.
• Magnetic filter F-MAG 3/4" -  due to special construction ensures double filtration effect: mechanical and magnetic. The magnetic filter protects the boiler measuring elements (eg. flow sensor) from ferromagnetic molecules which appear as the effect of the interference with and corrosion of central heating installation.
• Circulation pump
• Safety valve- 0,3MPa
• Automatic vent
• Manometer

Optional equipment

Three way valve allows co-operation with a domestic hot water cylinder
It can control both a three-way valve (for example a Honewell VCZMH6000E with a VC6012ZZ00 servo) and the temperature in the cylinder (heat exchanger). The boiler can work with a tank (heat exchanger) equipped with a thermostat or the
domestic hot water temperature can be even set on the boiler if a WE-008 temperature sensor is used.

Temperature programmer
Temperature programmer (for example Auraton2005) allows control of boiler operation according to user's requirements.

Technical data

 *While calculating demand for thermal energy, a number of factors should be  taken into consideration:


- building cubature
- value of heat transfer through walls, windows and ceilings
- level of room ventilation
- heat accumulation

All technical data is based on standards of Central European countries. However, Kospel S.A. is fully flexible to adjust its appliances to other standards.
