EKCO.MN

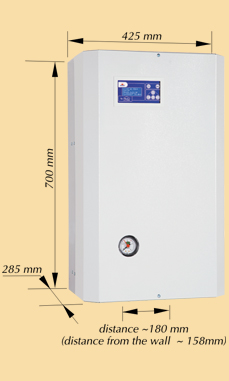

EKCO.MNz boiler with an outdoor temperature control  can work on one or two central heating systems and also with a domestic hot water cylinder. Due to automatic response to an ambient temperature change the boiler ensures entirely maintenance free operation and substantial energy savings. It is equipped with an expansion vessel ( Capacity: 6 litres).

It can either operates as an independent source of heat or cooperate with other boilers. The application of the proper control system ensures high heat comfort, nearly maintenance free work as well as the possibility of individual setting adjustment. The quick system reaction to the changes of temperature together with the automatic 6-stage power modulation ensures the maximum efficiency in the power consumption.

Download

• Operating and installation instruction
• Catalogue card
• EC Declaration of conformiity
• Intertek UK approval

Features

• Panel control - electronic control board enures regulation of boiler parameters. It allows to set four room temperatures for 30 minutes periods. Its features programming functions with 6 preset and 2 individual programs. Its software can control up to 8 boilers in cascade connection.
• Power board  consists of electronic and semiconductor elements to ensure noisless and failure-free performance.
• Safety temperature limiter  cuts off the power in case of boiler failure. Protects heating box and electronic elements against failure.
• Magnetic filter F-MAG 3/4" - due to special construction ensures double filtration effect: mechanical and magnetic. The magnetic filter protects the boiler measuring elements (eg. flow sensor) from ferromagnetic molecules which appear as the effect of
  the interference with and corrosion of central heating installation
• Circulation pump
• Safety valve- 0,3MPa
• An expansion vessel of capacity 6 litres
• Automatic vent
• Manometer
• Sensors of indoor and oudoor temperature

Optional equipment

Three way valve allows co-operation with a domestic hot water cylinder.
It can control both a three-way valve (for example a Honewell VCZMH6000E with a VC6012ZZ00 servo) and the temperature in the cylinder (heat exchanger). The boiler can work with a tank (heat exchanger) equipped with a thermostat or the
domestic hot water temperature can be even set on the boiler if a WE-008 temperature sensor is used.

Technical data

*While calculating demand for thermal energy, a number of factors should be  taken into consideration:


- building cubature
- value of heat transfer through walls, windows and ceilings
- level of room ventilation
- heat accumulation

All technical data is based on standards of Central European countries. However, Kospel S.A. is fully flexible to adjust its appliances to other standards.
