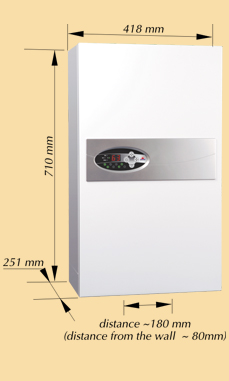

EKCO.LN2p
EKCO.L2p is adjusted to co-operate with a wet underfloor heating system (temperature regulation between 20 C and 60 C). It can either operates as an independent source of heat or cooperate with other boilers. The application of the proper control system ensures high heat comfort, nearly maintenance free work as well as the possibility of individual setting adjustment. The quick system reaction to the changes of temperature together with the automatic 6-stage power modulation ensures the maximum efficiency in the power consumption.
Download
Additional features
- Panel control - electronic control board enures regulation of water temperature in central heating installation between 20oC do 60oC.
- Power board - consists of electronic and semiconductor elements to ensure noisless and failure-free performance.
- Safety temperature limiter cuts off the power in case of boiler failure. Protects heating box and electronic elements against failures.
- Differential pressure reliew valve (Bypass) It allows the system to keep minimal flow of medium through the boiler and reduces a noises in installation during the thermostatic valves closing.
- Magnetic filter F-MAG 3/4" - due to special construction ensures double filtration effect: mechanical and magnetic. The magnetic filter protects the boiler measuring elements (eg. flow sensor) from ferromagnetic molecules which appear as the effect of the interference with and corrosion of central heating installation.
- Circulation pump
- Safety valve- 0,3MPa
- Automatic vent
- Manometer
Optional equipment
Temperature programmer
Temperature programmer (for example Auraton2005) allows control of boiler operation according to user's requirements.
Technical data
|
Rated power |
kW |
4 |
6 |
8 |
4 |
6 |
8 |
|
Rated voltage |
|
230V~ |
400V 3N~ |
||||
|
Fuse rated current |
A |
20 |
32 |
40 |
10 |
16 |
|
|
Min. connecting wires section |
mm2 |
3x2,5 |
3x4 |
3x6 |
5x1 |
5x1,5 |
|
|
Approximate heating area* |
m2 |
30-50 |
40-70 |
60-100 |
30-50 |
40-70 |
60-100 |
|
Rated power |
kW |
12 |
15 |
18 |
21 |
24 |
|
Rated voltage |
|
400V 3N~ |
||||
|
Fuse rated current |
A |
20 |
25 |
32 |
40 |
|
|
Min. connecting wires section |
mm2 |
5x2,5 |
5x4 |
5x6 |
||
|
Approximate heating area* |
m2 |
100-140 |
130-180 |
150-220 |
180-250 |
220-300 |
**While calculating demand for thermal energy, a number of factors should be taken into consideration:
- building cubature
- value of heat transfer through walls, windows and ceilings
- level of room ventilation
- heat accumulation
All technical data is based on standards of Central European countries. However, Kospel S.A. is fully flexible to adjust its appliances to other standards.
