WZ Termo Hit
WZ cylinder for co-operation with traditional solid fuel cooker. Capacity: 80, 100, 120, 140, liters.
Download
The most modern enamelling technology
Kospel boasts the most modern fully automatic dry enamelling line for manufacturing hot water cylinders. The dry enamelling technology is an advanced method of applying enamel with optimal thickness over an entire inner surface of cylinder. This method as compared to traditional wet enamelling technology improves quality of enamel coat and ensures long-lasting cylinder performance.
Due to the fining and recovery processes at the stage of cleaning tank and enamelling it the new technology guarantees production with maximum materials saving.The manufacturing process is conducted in accordance with the newest european ecological standards.
Exceptional thermal insulation
The thermal insulation made of black hardened polystyrene foam designed for application in advanced heat engineering. The hardened and very dense foam provide better thermal insulation and protection against mechanical damages.
Temperature gauge
A temperature gauge is applied to read out and control water temperature.
Water diffuser
The water diffuser to reduce mixing of cold and hot water. It guarantees steady water temperature distribution.
Optional equipment
Immersion heater with a thermostat - 1,4kW or 2kW (manual download)

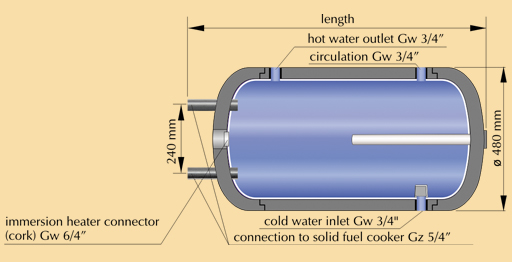

Technical data
|
Type |
|
WZ 80 |
WZ 100 |
WZ 120 |
WZ 140 |
|
|
Capacity |
l |
80 |
100 |
120 |
140 |
|
|
Rated pressure |
MPa |
container 0,6 |
||||
|
Rated temperature |
oC |
80 |
||||
|
Weight |
kg |
24 |
28,5 |
33 |
36 |
|
|
Length |
mm | 920 | 1125 | 1295 | 1365 | |
