SB Termo Solar

rodzina_SB

Application

SB Termo Solar (twin coil cylinder) is a device for heating and storing the water. Capacity: 200, 250, 300, 400 liters.

Download

EC Declaration of conformity

Key advantages:

The most modern enamelling technology

Kospel boasts the most modern fully automatic dry enamelling line for manufacturing hot water cylinders. The dry enamelling technology is an advanced method of applying enamel with optimal thickness over an entire inner surface of cylinder. This method as compared to traditional wet enamelling technology improves quality of enamel coat and ensures long-lasting cylinder performance.

Due to the fining and recovery processes at the stage of cleaning tank and enamelling it the new technology guarantees production with maximum materials saving.The manufacturing process is conducted in accordance with the newest european ecological standards.

High performance of cylinder

Cylinder features a large surface area of heating coil positioned at the very bottom of cylinder. It guarantees fast heat transfer and a steady water temperature distribution.

Highly effective thermal insulation

Effective thick thermal insulation minimises heat losses from the cylinder. Its rigid silver colour enclosure ensures aesthetic look and provides protection against mechanical damages.

Optional equipment

Immersion heater - 1,4kW-2kW

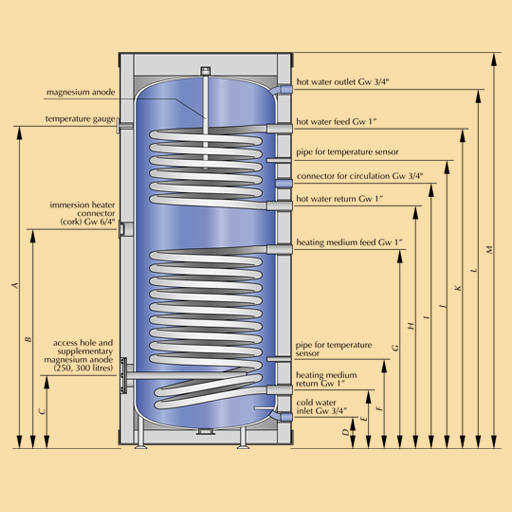

SB-200_300_ANG

SB Termo Solar 200, 250, 300, 400 liters

Technical data

Type			SB-200	SB-250	SB-300	SB-400
Rated capacity		l	200	250	300	400
Rated pressure		MPa	tank 0,6 / coil 1,0
Surface area of lower coil		m²	1,1	1,0	1,5	1,7
Power of lower coil *		kW	39	37	50	56
Surface area of upper coil		m²	0,7	0,8	0,8	0,9
Power of upper coil *		kW	32	34	34	36
24hrs electricity losses**		kWh	2,0	2,1	2,7	2,4
Dimensions	Diameter	mm	600	695	695	755
	A		1306	1089	1323	1355
	B		858	687	916	920
	C		-	316
	D		127	127	127	124
	E		258	241	241	245
	F		395	378	378	381
	G		813	628	852	856
	H		903	746	980	986
	I		993	836	1070	1076
	J		1098	941	1175	1181
	K		1290	1079	1313	1319
	L		1464	1230	1464	1498
	M		1610	1379	1614	1660

* Following parameters: 80/10/45^o C – heating water temp./ feed water temp./ domestic water temp, flow rate of heating water through the coil 3,0m³/h.
** Constant water temp. (60^oC)
