SBZ Termo-Solar
Application
SBZ Termo Solar (twin coil cylinder) is a device for heating and storing the water. The SBZ cylinder is equipped with two coils and two extra connectors for external heat exchanger. Capacity: 250 and 300 liters.
Download
Key advantages
The most modern enamelling technology
Kospel boasts the most modern fully automatic dry enamelling line for manufacturing hot water cylinders. The dry enamelling technology is an advanced method of applying enamel with optimal thickness over an entire inner surface of cylinder. This method as compared to traditional wet enamelling technology improves quality of enamel coat and ensures long-lasting cylinder performance.
Due to the fining and recovery processes at the stage of cleaning tank and enamelling it the new technology guarantees production with maximum materials saving.The manufacturing process is conducted in accordance with the newest european ecological standards.
High performance of cylinder
Cylinder features a large surface area of heating coil positioned at the very bottom of cylinder. It guarantees fast heat transfer and a steady water temperature distribution.
Highly effective thermal insulation
Effective thick thermal insulation minimises heat losses from the cylinder. Its rigid silver colour enclosure ensures aesthetic look and provides protection against mechanical damages.
Optional equipment
Immersion heater - 1,4kW or 2kW

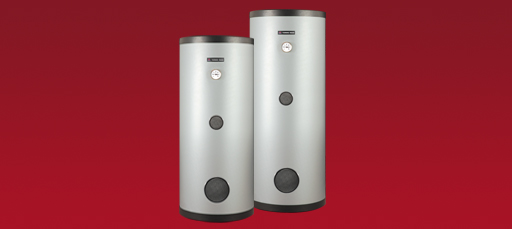

SBZ Termo Solar 250 and 300 liters
Technical data
|
Type |
SBZ-250 |
SBZ-300 |
||
|
Rated capacity |
l |
250 |
300 |
|
|
Rated pressure |
MPa |
tank 0,6 / coils1,0 |
||
|
Surface area of lower coil |
m2 |
1,0 |
1,5 |
|
|
Power of lower coil * |
kW |
37 |
50 |
|
|
Surface area of upper coil |
m2 |
0,8 |
||
|
Power of upper coil * |
kW |
34 |
||
|
24hrs electricity losses**
|
kWh |
2,1 |
2,7 |
|
|

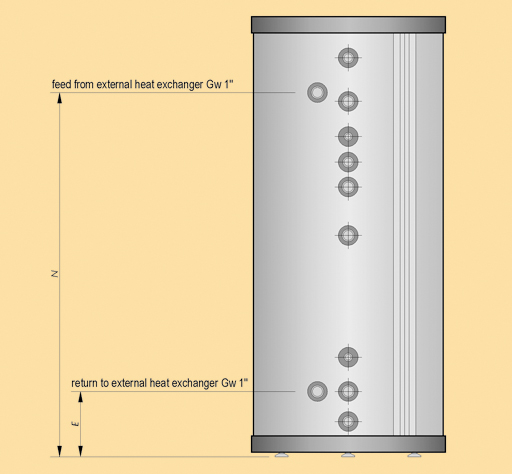

Dimensions |
Diameter |
mm |
695 |
|
|
A |
1094 |
1328 |
||
|
B |
693 |
922 |
||
|
C |
316 |
|||
|
D |
132 |
|||
|
E |
246 |
|||
|
F |
383 |
|||
|
G |
634 |
858 |
||
|
H |
752 |
986 |
||
|
I |
842 |
1076 |
||
|
J |
947 |
1181 |
||
|
K |
1084 |
1318 |
||
|
L |
1235 |
1469 |
||
|
M |
1379 |
1614 |
||
| N | 1121 | 1355 | ||
* Following parameters: 80/10/45o C – heating water temp./ feed water temp./ domestic water temp, flow rate of heating water through the coil 3,0m3/h.
** Constant water temp. (60oC)
